In October 2023, URC Systems tested the underslung SYMON Craft receiving module on Skyspotter with LIAZ and JISR Institute.

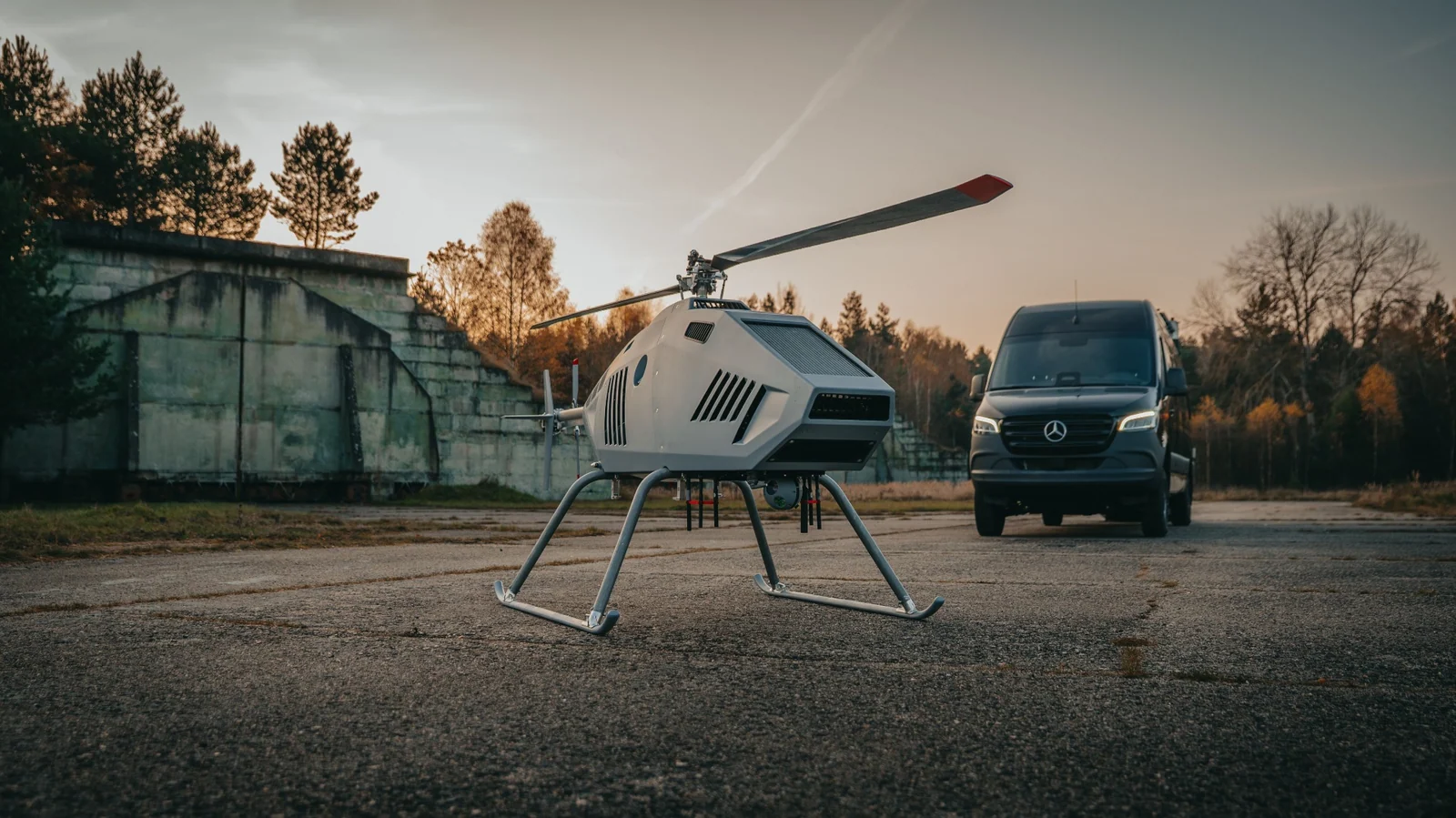

SKYSPOTTER 152
An unmanned helicopter for reconnaissance, logistics and communications. Czech development and manufacturing, vertical take-off and mission equipment matched to your task.
MTOW / TRANSPORT CARGO200 kg / up to 40 kgCONTROL RANGE100 kmMAX ALTITUDE ABOVE SEA2 000 m AMSLENDURANCEup to 4 h
Mission planning considers fuel, payload and the aircraft configuration together. The quoted maximum values are not additive; weight, balance and achievable endurance must be confirmed for each configuration.
To protect the confidentiality of real-world tests and missions, most images on this website have been edited or generated using AI.
One platform. Endless missions.
A modular payload system enables rapid reconfiguration for any deployment scenario.
TransportCargo up to 40 kg, precision drop, winch release up to 30 m.Optical monitoringStabilised daylight and thermal cameras. Compare specific EO, LWIR and MWIR sensors for your mission.Electronic warfareSignal retransmissionRadar technologiesAirborne communications surveillance. Passive receiving systems and separately assessed active-protection options.RESCUESearch & rescue support — distress beacon locating, area scanning, mission relay.CBRN monitoringDetection, sensing, tracking & mapping of CBRN threats.SprayingDisinfection, vector control, precision agriculture, decontamination.ELINTElectronic intelligence — passive reception and analysis of radar signals.
See all mission profiles Skyspotter in projects and trials
From joint trials to specialised variants. Equipment and verification scope are agreed for your configuration.
VTÚ · 152M relay system
The 2024 Ministry of Defence–VTÚ contract provides for delivery of a system based on Modelárna LIAZ's Skyspotter 152M for tactical and sensor-data relay.
Leonardo · Gabbiano on Skyspotter 150A
LIAZ and Leonardo jointly presented Skyspotter 150A with Gabbiano Ultra-Light radar in 2018. Their cooperation began in 2017.
SKYSPOTTER 152 — A / B / C
Three configurations matched to the mission — from stationary container to tactical field kit.
Container-based stationary set
UAV in a transport container, separate Ground Control Station (GCS), directional antennas for long range.
- Transport container
- Separate GCS
- Directional long-range antennas
Mobile van with deployable UAV
Built-in GCS, antenna mast, rapid deployment from a 10 × 10 m area.
- Built-in GCS
- Antenna mast
- Rapid 10 × 10 m deployment
Tactical portable kit
Hand-held control unit, ruggedized case with displays, minimum operator footprint.
- Hand-held control
- Ruggedized case
- Minimum footprint
Flight parameters that enable every mission.
Load capacityconfiguration-dependentThe transport configuration carries up to 40 kg of cargo. Sensor payload capacity is determined by the installed equipment and fuel.Range of controlup to 100 kmA control range of up to 100 km supports missions beyond the immediate operating area.Generator2 kWA 2 kW onboard generator supplies the power needed by demanding mission payloads.Axis control4 axis (x, y, z + rotation)Four-axis control covers movement in space and rotation for precise helicopter manoeuvring.Max. speed100 km/hA maximum speed of 100 km/h enables rapid movement between operating areas.Datalink2x datalink (WaveRelay, L+C)Two datalink paths combine WaveRelay and L/C-band communication for mission connectivity.UAV empty weight145 kgThe empty aircraft weight defines the starting point for fuel, payload and mission configuration.MTOW200 kgA maximum take-off weight of 200 kg defines the upper limit of the complete flight configuration.Service ceiling2 000 m AMSLOperation up to 2,000 m AMSL supports deployments in elevated and varied terrain.Enduranceup to 4 hFlight endurance of up to four hours enables persistent observation and long mission cycles.
Vertical take-off & landing, hover
Tactical take OFF - take OFF from 10 × 10 m area
Autonomous take-off, flight & landing
Powers energy-intensive payloads
LIAZ GROUP — continuing the legend.
We build on the LIAZ engineering tradition in Liberec. As a Czech-owned company, we develop and manufacture rotary unmanned aerial systems for defence, security and civilian missions. We integrate specialist mission equipment in cooperation with its suppliers.
Read full story100% Czech-owned
Manufactured in CZ
11 mechanical modules
179 components
MODULARITY ENABLING RAPID SERVICE
11
Mechanical modules
9
Electrical modules
7
Cable modules
9
Sensors
179
Components
All modules
Stock availability
Service Portal LIAZ
- Secure connection to GCS via anonymized data portal
- Service computer and AR glasses at the customer site
- Full diagnostic cycle: inspection, data log, fault analysis, repair
- Remote ordering and integration of replacement modules
- Escalation procedure: on-site specialist intervention
From requirements to your configuration
The proposal will cover the aircraft, ground segment, mission equipment, training and support scope to match the agreed requirements.
- 01
Mission requirements
Task, environment, required output, number of systems and timeframe.
- 02
Technical proposal
Payload, datalink, weight budget and A / B / C ground configuration.
- 03
Demonstration and verification
Together, we define the demonstration scenario and measurable acceptance criteria.
- 04
Proposal and delivery
We agree pricing, schedule, operator training, spares and service terms.
Delivery and commercial terms
- Price
- On request, depending on configuration
- Delivery time
- Up to 8 months
- Payment
- Advance payment or open credit
- Export
- Subject to applicable export licensing
The schedule and delivery scope will be confirmed in the quotation for the selected configuration.
